Westfield MKX series swing away augers

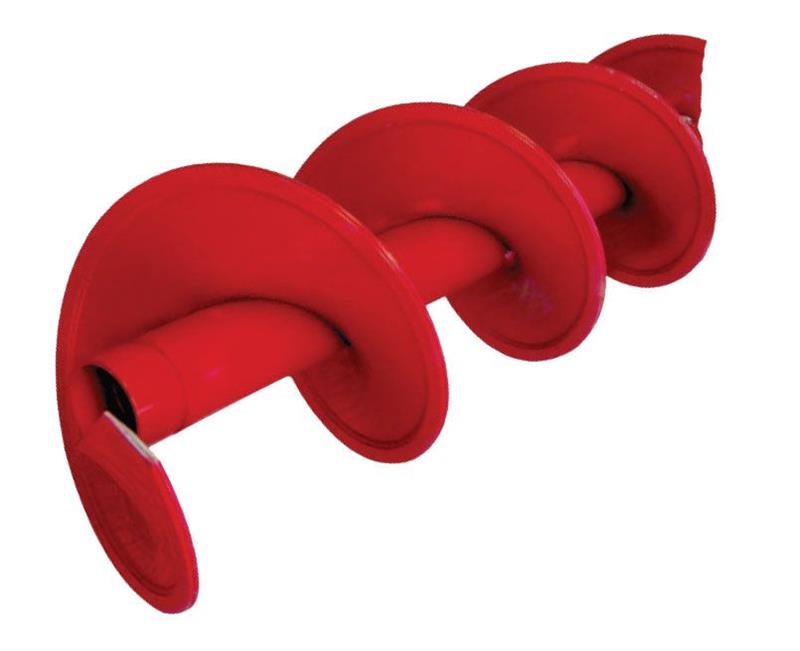

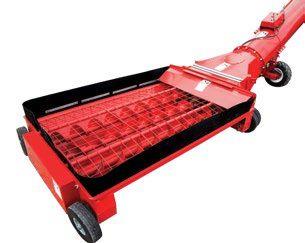

The MKX Swingaway auger features precision engineered auger flighting, commercial strength frame and trussing and easier-to-use hopper, guaranteeing unmatched dependability and serviceability. The MKX Series features an A-frame undercarriage to withstand bowing and maintain rigid alignment during heavy loads. The MKX Series is available in 13” and 16” models ranging from 105’ to 125’.

MODEL SERIES TUBE WIDTH LENGTH PTO REQ'D VERTICAL REACH FORWARD REACH (RAISED)
1073 X 10 73' 60 HP 47' 10 (14.6m) 28' (8.5m)
1083 X 10 83' 65 HP 55' 3 (16.8m) 32' 1 (9.8m)
1384 X 13 84' 155 HP 55' (16.6m) 34' 8 (10.6m)
1394 X 13 94' 165 HP 60' 1 (18.3m) 38' 5 (11.7m)
13114 MKX 11 114' 185 HP 67' 9 (20.6m) 45' (13.7m)
16105 MKX 16 105' 200 HP 75' 6 (23.0m) 41' 1 (12.5m)
16125 MKX 16 125' 225 HP 86' (26.2m) 49' 3 (15.0m)
