Schulte FX-742 rotary cutter

Pasture CareSlashers/Finishing Mower

$255,500.00

AUD. Price inc GST
Make
Schulte
Model No.
FX-742
Condition
New
Price effective
19/Feb/2024
Available from
(available now)
Location
Wellington, 2820, NSW
Delivery
Available

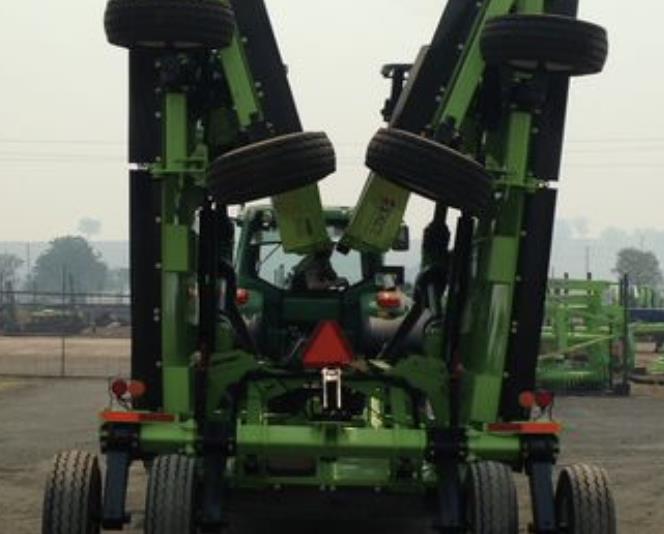

Photo 1. Schulte FX-742 rotary cutter

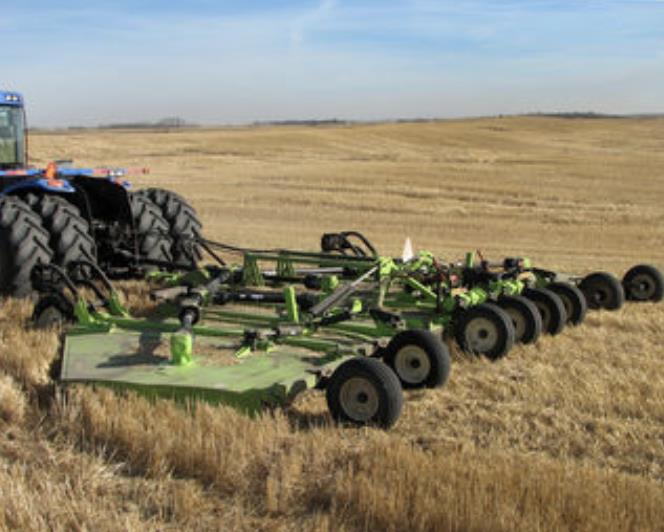

Photo 2. Schulte FX-742 rotary cutter

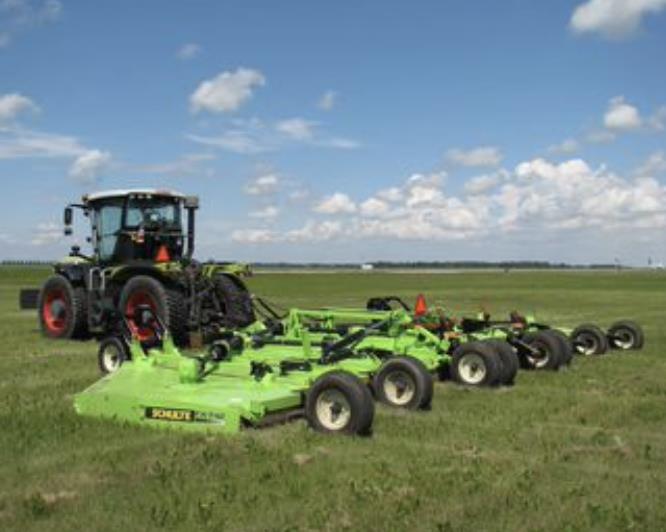

Photo 3. Schulte FX-742 rotary cutter

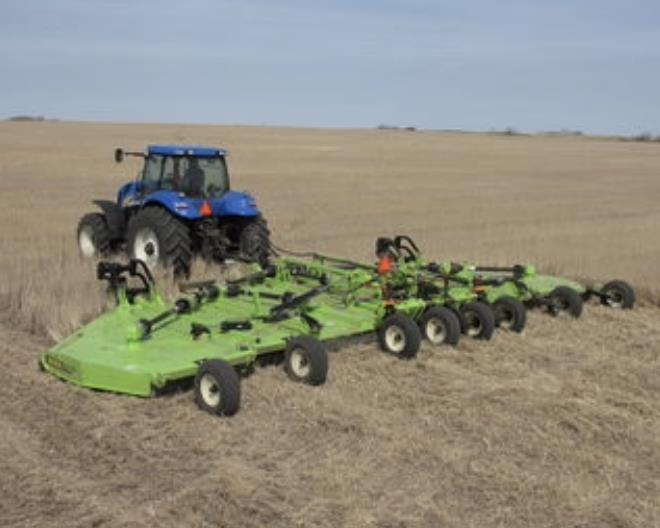

Photo 4. Schulte FX-742 rotary cutter
Photo 5. Schulte FX-742 rotary cutter
Schulte FX-742 rotary cutter
Schulte FX-742 rotary cutter

FX-742 Specifications and Pricing
Cutting width 12.8 m (42')
Overall width 13.1 m (42' 11)
Overall length 7.4 m (24' 3)
Transport width 3 - 3.7 m (9 10 - 12' 2) dependent on row crop wheel spacings
Transport height 4.2 m (13 9)
Cutting height 51 mm - 406 mm (2 - 16)
Cutting capacity 51 mm (2)
Approximate weight 8,165 kg
Hitch weight 2,950 kg
Deck thickness 10 GA (0.134, 3.4 mm)
Side skirt thickness 6.4 mm (1/4)
Power Divider gear box rating 350 HP (261 kW)
Centre & Wing gearbox rating 190 HP (142 kW)
Blade tip speed - 1000 RPM 4,970 m/min (16,300 ft/min)
Blade overlap 152 mm (6)
Inside wing working range 11 down to 13 up
Outside wing working range 8 down to 10 up
Drive size - tractor shaft
Size 10 CV
Drive size - Centre and wing boxes
Category 6
Recommended tractor HP 350HP (261 kW) - ensure drawbar can support hitch weight
Deflectors
Single Chains & Half Rubber Flaps Front & Rear
Suspension
Rubber grommet 3 puck system (3 sets)
Current Price - Pan unit with single blades OR Fixed knife T-Bar mulching unit $255,500.00
Options Pricing
Fan Trash Disbursement Kit $15,600.00
