Schulte FX-530 rotary cutter

Pasture CareSlashers/Finishing Mower

$165,000.00

AUD. Price inc GST
Make
Schulte
Model No.
FX-530
Condition
New
Price effective
19/Feb/2024
Available from
(available now)
Location
Wellington, 2820, NSW
Delivery
Available

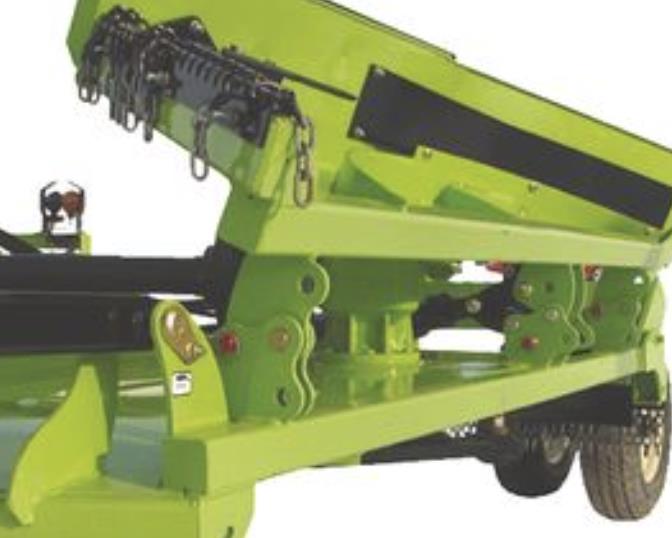

Photo 1. Schulte FX-530 rotary cutter

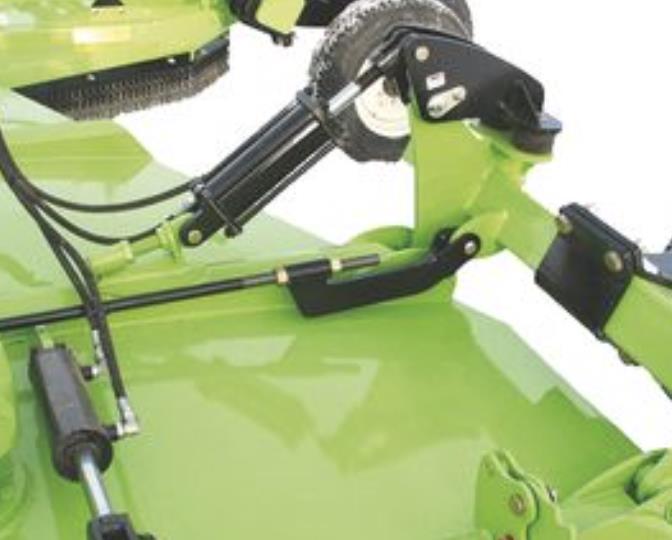

Photo 2. Schulte FX-530 rotary cutter

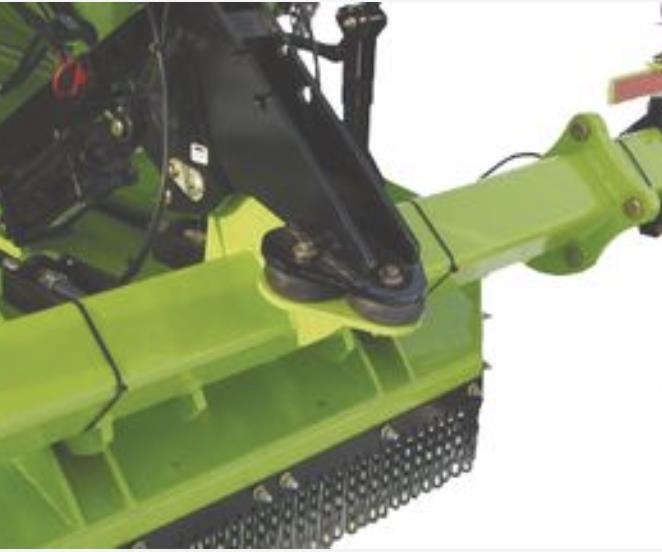

Photo 3. Schulte FX-530 rotary cutter

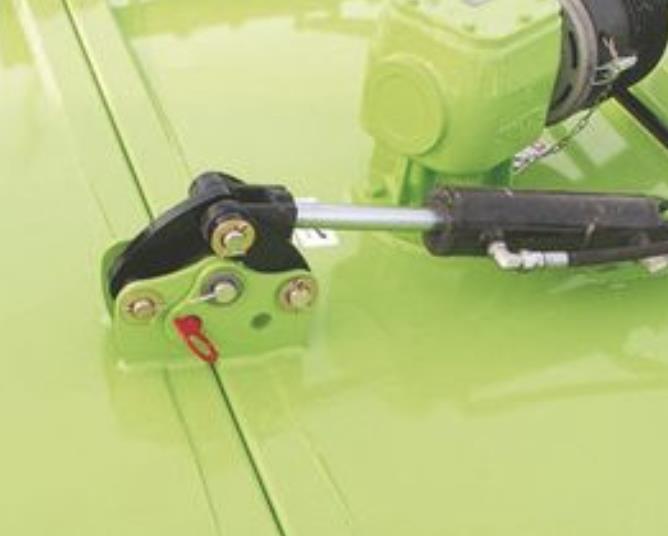

Photo 4. Schulte FX-530 rotary cutter
Photo 5. Schulte FX-530 rotary cutter
Schulte FX-530 rotary cutter
Schulte FX-530 rotary cutter

FX-530 Specifications and Pricing
Cutting width 9.3 m (30' 5)
Overall width 9.6 m (31' 5)
Overall length 6 m (19' 8)
Transport width 3 - 3.88 m (9 10 - 12' 9) dependent on row crop wheel spacings
Transport height 4.5 m (14 8)
Cutting height 51 mm - 381 mm (2 - 14)
Cutting capacity 51 mm (2)
Approximate weight 5,580 kg
Hitch weight 2,041 kg
Deck thickness 10 GA (0.134, 3.4 mm)
Side skirt thickness 6.4 mm (1/4)
Power Divider gear box rating 350 HP (261 kW)
Centre & Wing gearbox rating 210 HP (157 kW)
Blade tip speed - 1000 RPM 4,970 m/min (16,300 ft/min)
Blade overlap 152 mm (6)
Wing working range 16 down to 21 up
Wing floating range 16 down to 21 up
Drive size - tractor shaft
Category 7 CV
Drive size - Centre and wing boxes
Category 6
Recommended tractor HP 200 HP (149 kW) - ensure drawbar can support hitch weight
Deflectors
Single Chains & Half Rubber Flaps Front & Rear
Suspension
Rubber grommet 3 puck system (3 sets)
Current Price - Pan unit with single blades OR Fixed knife T-Bar mulching unit $165,000.00
Options Pricing
Fan Trash Disbursement Kit $15,600.00
Hydraulically actuated outer wing fold $2,330.00
