Schulte FX-520 rotary cutter

Pasture CareSlashers/Finishing Mower

$106,000.00

AUD. Price inc GST
Make
Schulte
Model No.
FX-520
Condition
New
Price effective
19/Feb/2024
Available from
(available now)
Location
Wellington, 2820, NSW
Delivery
Available

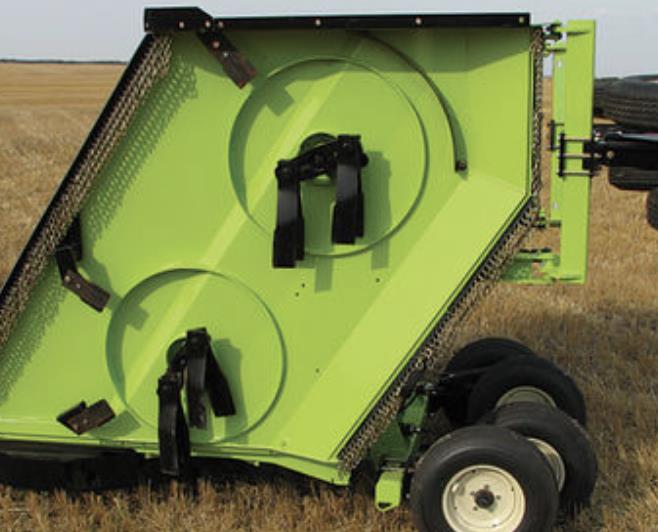

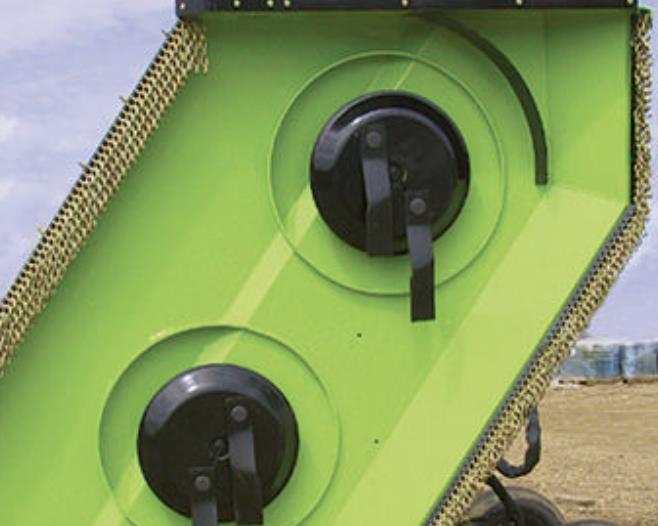

Photo 1. Schulte FX-520 rotary cutter
Photo 2. Schulte FX-520 rotary cutter
Photo 3. Schulte FX-520 rotary cutter
Photo 4. Schulte FX-520 rotary cutter
Photo 5. Schulte FX-520 rotary cutter
Schulte FX-520 rotary cutter
Schulte FX-520 rotary cutter

FX-520 Specifications and Pricing
Cutting width 6.1 m (20)
Overall width 6.2 m (20' 7)
Overall length 6.15 m (20' 2)
Transport width 2.32 m (7 7)
Transport height 3.05 m (10)
Cutting height 51 mm - 445 mm (2 - 17.5)
Cutting capacity 51 mm (2)
Approximate weight 2,960 kg
Hitch weight 1,034 kg
Deck thickness 7 GA (3/16, 4.6 mm)
Side skirt depth & thickness
346 mm (13.63) & 6.35 mm (1/4)
Power Divider gear box rating 260 HP (194 kW)
Centre & Wing gearbox rating 190 HP (142 kW)
Blade tip speed - 1000 RPM
4,900 m/min (16,000 ft/min)
Blade overlap 152 mm (6)
Wing working range 25 down to 90 up
Wing floating range
25 down to 40 up
Drive size - tractor shaft
Category 7 CV
Drive size - Centre box
Category 5
Drive size - Inside wing box
Category 6
Drive size - Outside wing box
Category 5
Recommended tractor HP 115 HP (86 kW)
Deflectors Single Chains & Half Rubber Flaps Front & Rear
Suspension
Rubber grommet 3 puck system
Current Price - Pan unit with single blades OR Fixed knife T-Bar mulching unit
$106,000.00
Options Pricing
Mulching Blades in lieu of singles on pans $1,650.00
Side Eject Option (per side) $3,250.00
