Schulte FX-318 rotary cutter

Pasture CareSlashers/Finishing Mower

$70,500.00

AUD. Price inc GST
Make
Schulte
Model No.
FX-318
Condition
New
Price effective
19/Feb/2024
Available from
(available now)
Location
Wellington, 2820, NSW
Delivery
Available
Photo 1. Schulte FX-318 rotary cutter
Photo 2. Schulte FX-318 rotary cutter
Photo 3. Schulte FX-318 rotary cutter
Photo 4. Schulte FX-318 rotary cutter
Photo 5. Schulte FX-318 rotary cutter
Schulte FX-318 rotary cutter
Schulte FX-318 rotary cutter

FX-318 Specifications and Pricing
Cutting width 5.5 m (18)
Overall width 5.8 m (19)
Overall length 5.3 m (17 4)
Transport width 2.36 m (7 9)
Transport height 2.77 m (9)
Cutting height 45 mm - 425 mm (1.75 - 16.75)
Cutting capacity 89 mm (3.5)
Approximate weight 2,631 kg
Hitch weight 1,066 kg
Deck thickness 7 GA (3/16, 4.6 mm)
Side skirt depth & thickness
346 mm (13.63) & 6.35 mm (1/4)
Power Divider gear box rating 260 HP (194 kW)
Centre & Wing gearbox rating 210 HP (157 kW)
Blade tip speed - 540 RPM
Centre 4,871 m/min (15,980 ft/min)
Wing 4,974 m/min (16,319 ft/min)
Blade tip speed - 1000 RPM
Centre 4,869 m/min (15,974 ft/min)
Wing 5,054 m/min (16,581 ft/min)
Blade overlap 152 mm (6)
Wing working range 25 down to 80 up
Wing floating range 25 down to 30 up
Tractor PTO speed
540 or 1000 RPM (dependent on unit drive shaft)
Drive size - tractor shaft
Cat. 6 CV (540 RPM), Cat. 5 CV (1000 RPM)
Drive size - centre & wings
Category 5
Minimum tractor HP 75 HP (56 kW)
Recommended tractor HP 90 HP (67 kW)
Deflectors
Single Chains & Half Rubber Flaps Front & Rear
Suspension

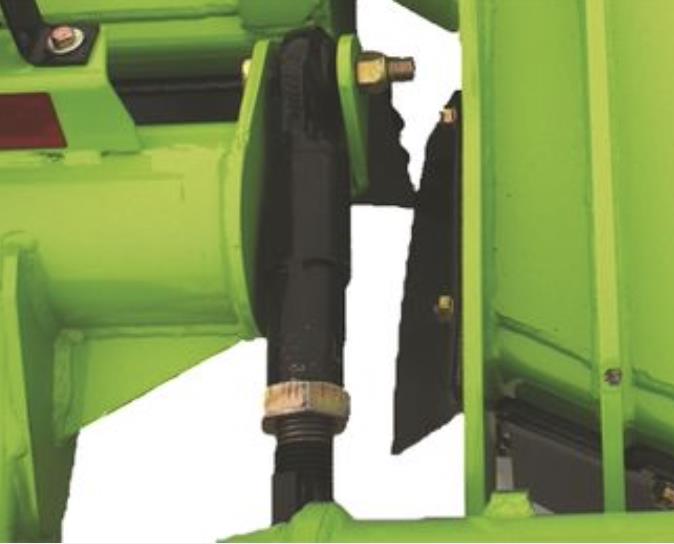

Rubber grommet 3 puck system
Current Price (single blades & laminate tyres) $78,500.00
Options Pricing
Mulching Blades in lieu of singles $1,280.00
Forklift Tyres in lieu of laminates $1,300.00
Side Eject Option (per side) $3,250.00
