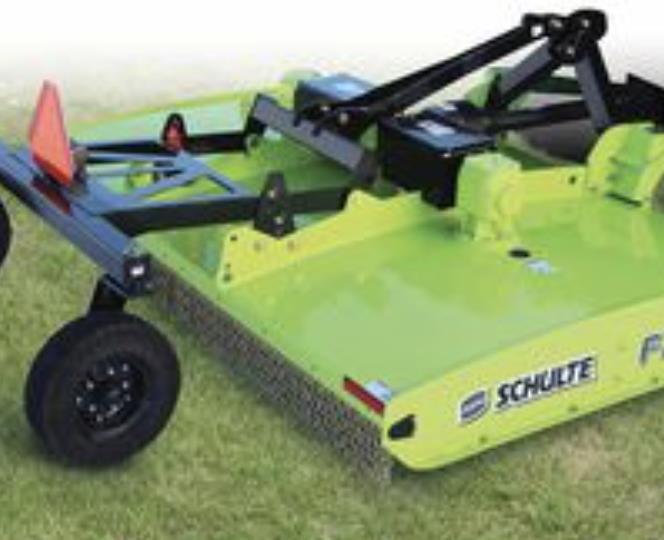

Schulte FX-209 rotary cutter
Pasture Care→Slashers/Finishing Mower$39,800.00
AUD. Price inc GST
Make
Schulte Model No.
FX-209 Condition
New Price effective
19/Feb/2024 Available from
(available now) Location
Wellington, 2820, NSW Delivery
Available
Schulte Model No.
FX-209 Condition
New Price effective
19/Feb/2024 Available from
(available now) Location
Wellington, 2820, NSW Delivery
Available
Schulte FX-209 rotary cutter
Schulte FX-209 rotary cutter
FX-209 Specifications and Pricing
Cutting width 2.78 m (9’ 1.25”)
Overall width 2.96 m (9’ 8.5) skids inboard
3.06 m (10’ 1/2) skids outboard
Overall length 4.1 m (13’ 6.5) trailing
3.3 m (10’ 7) other configurations
Transport clearance 29.2 cm (11.5)
Cutting height 5.1 cm - 33 cm (2 - 13)
Cutting capacity 7.6 cm (3) diameter
Approximate weight 952 – 1297 kg dependent on configuration
Hitch type Cat. II & III 3 Point / Semi Mount Swing, Trailing
Deck thickness 7 GA (3/16, 4.6 mm)
Side skirt thickness & depth 6.35 mm x 337 mm (1/4 x 13.75)
Gear box rating 210 HP (157 kW)
Blade tip speed 540 RPM - 17,086 FPM
1000 RPM - 17,355 FPM
Tractor PTO speed 540 or 1000 RPM
Tractor size required 85 HP (63 kW) for linkage model
50 HP (37.3 kW) for trailing model
Deflectors Double Chain & Half Rubber Flaps Front & Rear
Current Price (single blades & laminate tyres) $38,325.00 Linkage
$39,800.00 Trailing
$42,680.00 Semi-mount swing
Options Pricing
Mulching Blades in lieu of singles $440.00
Forklift Tyres in lieu of laminates $450.00
Side Eject Option $3,604.00
