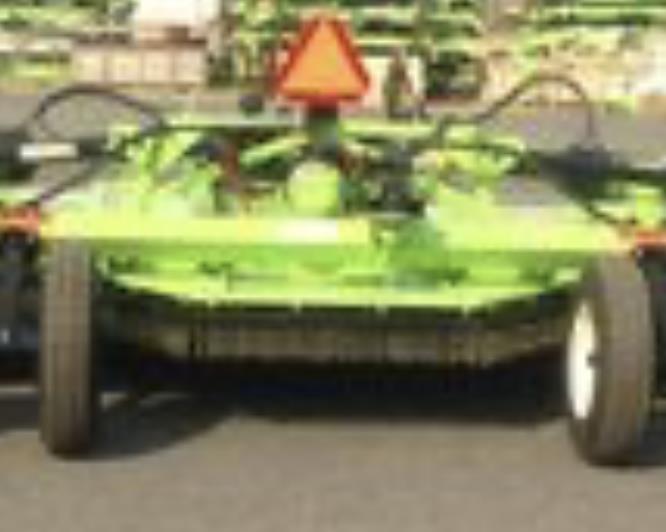

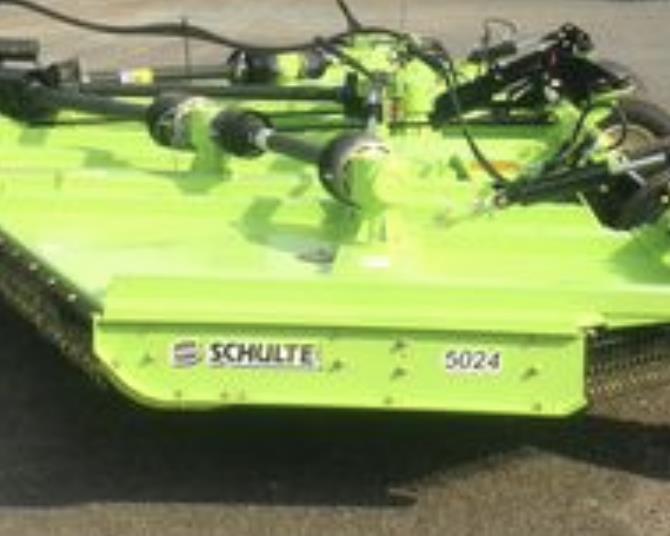

Schulte 5024 rotary cutter

5024 Specifications and Pricing
Cutting width 7.42 m (24’ 4)
Overall width 7.75 m (25' 5)
Overall length 5.13 m (17' 1”)
Transport width 2.98 m (9’ 9”)
Transport height 3.46 m (11’ 4)
Cutting height 25 mm - 356 mm (1 - 14)
Cutting capacity 51 mm (2)
Approximate weight 3,583 kg
Hitch weight 1,089 kg
Deck thickness
Centre deck 10 GA (0.134, 3.4 mm), Wings 7 GA (3/16, 4.6 mm)
Side skirt depth
Adjustable
Power Divider gear box rating 260 HP (194 kW)
Centre & Wing gearbox rating 190 HP (142 kW)
Blade tip speed - 1000 RPM
Centre 4,596 m/min (15,079 ft/min), Wings 4,663 m/min (15,300 ft/min)
Blade overlap 152 mm (6)
Wing working range 15° down to 40° up
Wing floating range 15° down to 40° up
Drive size - tractor shaft
Category 7 CV
Drive size - Centre box
Category 5
Drive size - Inside wing box
Category 6
Drive size - Outside wing box
Category 5
Recommended tractor HP 120 HP (90 kW)
Deflectors
Single Chains & Half Rubber Flaps Front & Rear
Suspension
Rubber grommet 3 puck system (3 sets)
Current Price - Pan unit with single blades OR Fixed knife T-Bar mulching unit $122,000.00
Options Pricing
Mulching Blades in lieu of singles $1,650.00
Side Eject Option (per side) $3,250.00
