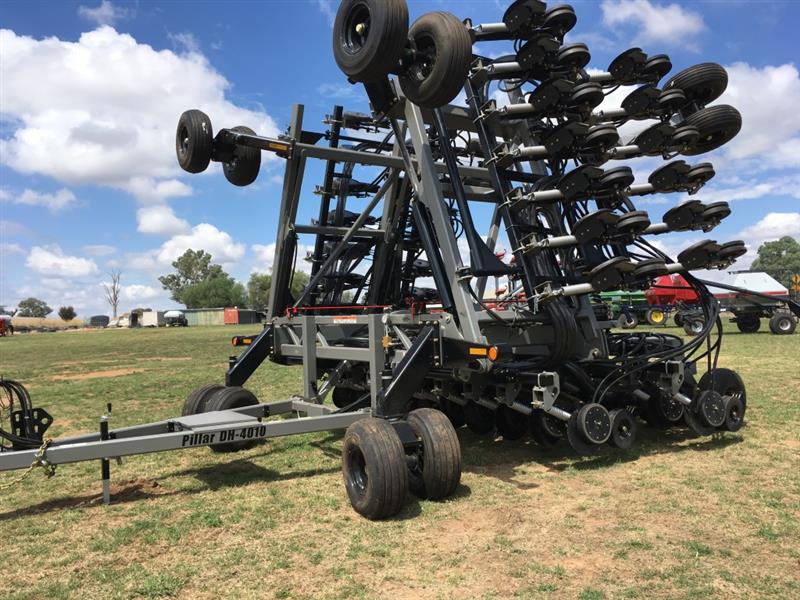

Pillar Laser DH 60 width airseeder

Width Spacing # Openers Weight Transport Width
60' 12 60 18,829 kg 7.16m

3rd Generation Disc Openers
The next-generation opener from Pillar keeps the same geometry and seed bed performance as previous models and adds the following:

Compatible with auto greasing system for less maintenance
Even better trash flow
Ease of access grease location
Cast frame is stronger overall
Easy down pressure adjustment
Easier depth adjustment
Self cleaning, hinged trash shield

Handles Heavy Trash
Crop residue is no problem with the Pillar disc seeder. A self-sharpening 18 disc carves the initial trench and the patented seed boot creates a firm seed bed without smearing. Save on residue management and retain moisture with a Pillar.

No Hairpinning
The patented Pillar opener eliminates seed hairpinning by carving a seed bed under even extreme crop residue. The seed boot lifts away soil without smearing the seed bed.

Works with Pre-Em's
Missing pre-emergents from your cropping program? At 10 km/h the Pillar DH disc seeder generates enough soil throw to incorporate pre-emergent herbicides. The disc cleaning wheel is used to adjust the amount of soil disturbance
