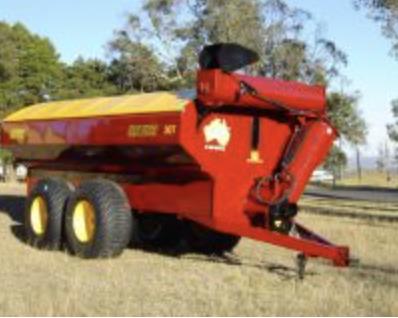

Oztec Grain Bin 40T

Our engineer designed Chaser Bins range from a 12T capacity up to 60T, with standard sizes of: 12T, 15T, 18T, 21T, 25T, 30T, 36T, 40T, 50T and 60T.

ADR and BPW Axle systems are utilised on our bins and depending on the requirements we use a single axle, tandem axle with self-steering walking beam suspension, or tri or quad axle self steer with independent hydraulic suspension . Flotation tyres are used which have a high carrying capacity whilst running at low inflation pressures, thus reducing soil compaction and providing stability. According to the manufacturer, these tyres have 2-3 times the life of ordinary agricultural tyres.

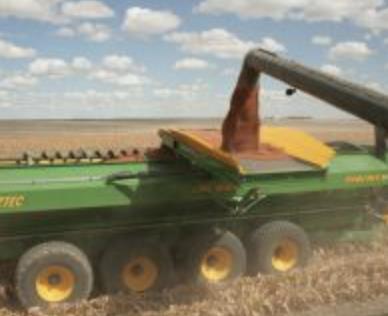

Longreach Conveyor for controlled traffic farming

Our patented Longreach Conveyor system enables pickup from headers on 9 to 14 metre tramlines, the 2000 wide belt conveyor and hungry boards gives a landing area of approximately 7.14 sq metres. This transfers the grain to the centre of the bin onto a full length cross auger on top of the bin which pulls the grain evenly forward and rear to fill the bin to the maximum capacity. The Longreach system is an optional extra on our 25T, 30T, 36T, 40T, 50T and 60T bins.

Standard Features:
16, 19 or 21 Discharge Auger
High Quality Walterscheid PTO Shaft included (for 19 and 21 discharge augers)
with over-running and friction clutches
Bare Co PTO Shaft included (for 16 Discharge Auger)
with heavy duty combined freewheel/safety clutch
Floor Auger
Hydraulic Control Floor Gates
Heavy Duty drive chain and sprockets
Ball Valve at front side of bin for sampling
75HP/100HP Gearbox on Discharge Auger
Full Length Hinged Cleanout Door
Heavy Duty Roll-top Roof Tarp
Fully welded construction
Optional Extras
Road Kit – comprising oversize sign, revolving amber light and combination brake indicators
Bagging Chute
Electrically or Hydraulically controlled adjustable spout on discharge auger
Weigh System
Hydraulic drive in lieu of PTO
