LQS70 MODULE

ORDER CODE: LQS70

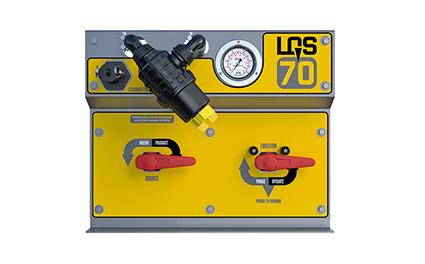

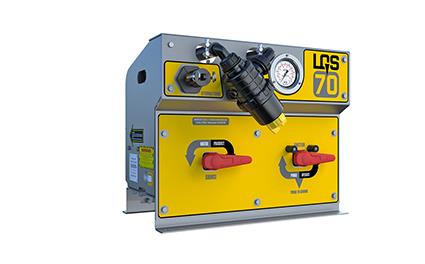

The new compact LQS70 is a single liquid auto-rate pump and control module. It provides enough capacity for applying liquids at rates with good tank agitation for up to 4000L tank capacity.

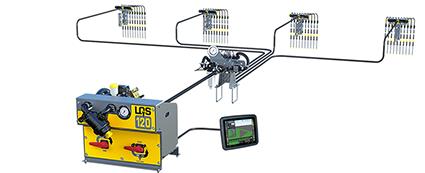

Built Tough and engineered to deliver target rates efficiently in-furrow day in day out. To complete the Liquid Kit we offer our ‘STACKER DISTRIBUTION KIT’ mount to any size tillage bar or planter with seamless integration for absolute positive liquid delivery in-furrow.

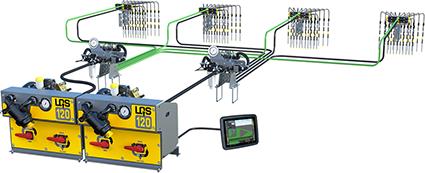

Upgrade module easily to a Dual System or add Section Control at any time.

KEY NEXT-GENERATION FEATURES:
Fast shut-off
Accurate rates
Reliable pump protection & speed set functions
More versatility for multi modules & Liquid Section Control
Simple Plug’n’Play integration
SPECIFICATIONS
Function Single liquid rate control
Max. Output 76 LPM 20GPM(US) 16.7GPM(Imperial)
Dimensions W 710mm x D 750mm x H 570mm
Weight 85kg (Module only)
Pump Hydraulically driven piston diaphragm pumps
Hydraulics 27.5LPM 7.3GPM (US) 6.0GPM(Imperial)
Electrical 12 DC Single Swath | 2A Section Control (8 sections) | 6A
