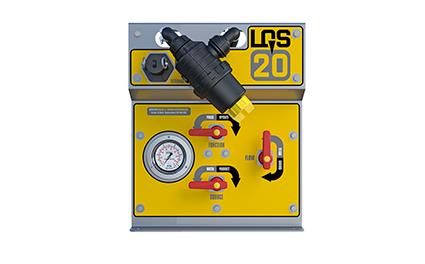

LQS20 MODULE

ORDER CODE: LQS20

The new compact LQS20 is a single liquid auto-rate pump and control module. The Spiker EVI dosing system has been designed for incorporating high viscosity fluids, such as trace elements, fungicides or soil wetters at very low rates into the main liquid delivery line.
Farmers can avoid costly spraying regimes by delivering these products into the furrow when planting. Spiker EVI removes the need for pre-mixing of chemicals in the product tank which can be both wasteful and inflexible and can create issues due to chemical incompatibilities.
Compared to mechanical proportional dosing devices, Spiker EVI allows for the application rate of the dosing chemical to be completely independent of the rate of the main carrier liquid. This provides the farmer with far greater flexibility and control. 1000L-2500L
Built Tough and engineered to deliver target rates efficiently in-furrow day in day out. To complete the Liquid Kit we offer our ‘STACKER DISTRIBUTION KIT’ mount to any size tillage bar or planter with seamless integration for absolute positive liquid delivery in-furrow.

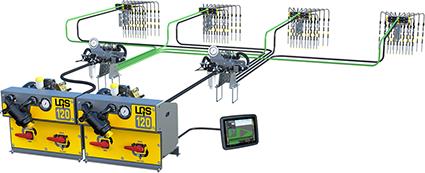

Upgrade module easily to a Dual System or add Section Control at any time.
KEY NEXT-GENERATION FEATURES:
Fast shut-off
Accurate rates
Reliable pump protection & speed set functions
More versatility for multi modules & Liquid Section Control
Simple Plug’n’Play integration

SPECIFICATIONS
Function Low Volume Single liquid rate control
Max. Output: 24LPM 6.3GPM(US) 5.3GPM(Imperial)
Dimensions W 510mm x D 870mm x H 590mm
Weight 63kg (Module only)
Pump Hydraulically driven piston diaphragm pumps
Hydraulics 21LPM 5.5GPM (US) 4.6GPM(Imperial)
Electrical 12 DC Single Swath | 2A Section Control (8 sections) | 6A
