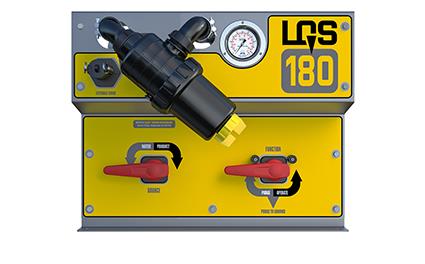

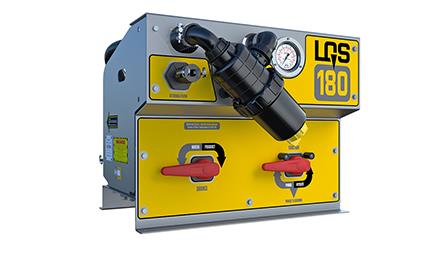

LQS180 MODULE

ORDER CODE: LQS180

The new compact LQS180 is a single liquid auto-rate pump and control module. It provides capacity for applying liquids at higher rates with good tank agitation for larger tanks (5000L and over).
Built Tough and engineered to deliver target rates efficiently in-furrow day in day out. To complete the Liquid Kit we offer our ‘STACKER DISTRIBUTION KIT’ mount to any size tillage bar or planter with seamless integration for absolute positive liquid delivery in-furrow.

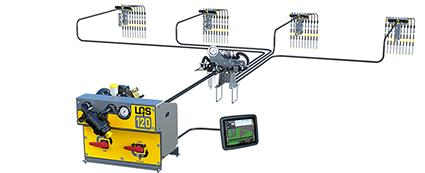

Upgrade module easily to a Dual System or add Section Control at any time.

KEY NEXT-GENERATION FEATURES:
Fast shut-off
Accurate rates
Reliable pump protection & speed set functions
More versatility for multi modules & Liquid Section Control
Simple Plug’n’Play integration
SPECIFICATIONS
Function High Volume Single liquid rate control
Max. Output: 170 LPM 45GPM(US) 37.5GPM(Imperial)
Dimensions W 800mm x D 860mm x H 718mm
Weight 121kg (Module only)
Pump Hydraulically driven piston diaphragm pumps
Hydraulics 27.5LPM 7.3GPM (US) 6.0GPM(Imperial)
Electrical 12 DC Single Swath | 2A Section Control (8 sections) | 6A
